Proximity Reader

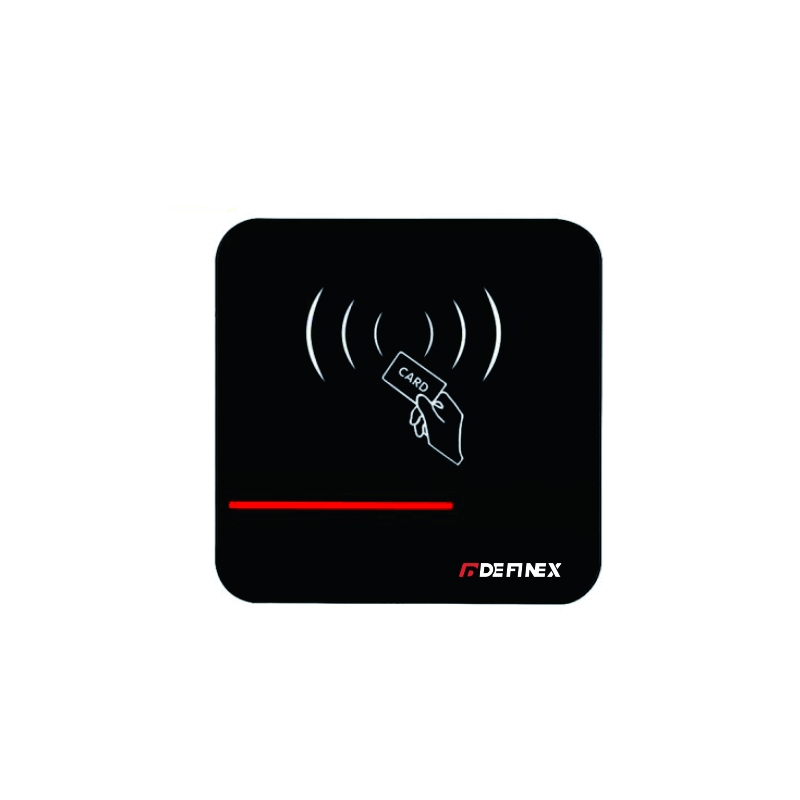

DX-R03MF(EM)

Proximity RFID Card Reader(EM/Mifare optional)
Fashionable cube style design
Waterproof,confirms to IP66
Wiegand 26/34(Default WG26)
Card type:EM 125kHZ/ Mifare 13.56mHZ optional
Read distance: EM<10CM,Mifare<5CM
Working voltage: 12V DC
Dimension: 80*80*22mm
Weight:80g
Enquiry Now

    · Plastic matte technic, fully potted, confirms to IP66
    · Support Mifare Card(13.56MHz), EM card(125KHz), or CPU card(13.56MHz,ISO14443A)optional
    · Wiegand 26/34 output, other formats need to be customized, ranging from Wiegand 26 to 42.
    · Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).

    Specifications:

    Model No.

    DX-R03EM

    DX-R03MF

    Read Format

    EM(125KHz)

    Mifare(13.56MHz)

    Read Range

    1-10CM(Max.)

    1-5CM(Max.)

    Comm.Interface

    Wiegand 26(default)/34 output

    Keypad

    N/A

    Verification Type

    Card

    Comm.Baudrate

    None

    LED Indicator

    Power/Comm.

    Beep Tone

    Buzzer

    Ingress Protection Rate

    IP66

    Working Voltage

    12V DC ±10

    Current Consumption

    60mA (max)

    Operating Temperature

    -45°C - 60°C

    Operating Humidity

    20% ~ 80%(Non-condensing)

    Unit Weight

    80g

    Dimension(WxHxD)

    80*80*22mm
