The QR code Reader is a new generation of intelligent access control card readers. The product has a high scanning speed, high recognition rate, strong compatibility. It can be connected to any access controller that supports Wiegand input. The reader adapts to various application scenarios and identifies almost all kinds of RFID cards and QR codes, so the series could be used for community management, visitor management, hotel management, unmanned supermarkets and other fields.
· New QR code access control technology
· Supports output modes of Wiegand 26/34/66, RS485, UART(TTL) and USB
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
Specifications:
· Supports output modes of Wiegand 26/34/66, RS485, UART(TTL) and USB
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
Specifications:
|
Model No.
|
DX-QR86-EM
|
DX-QR86-MF
|
DX-QR86-MF-RS232/RS485 |
| Communication Port | Wiegand(RS232/RS485/UART(TTL) optional) | Wiegand(RS232/RS485/TTL optional) | Wiegand RS232(RS485/TTL optional) |
|
Read card Format
|
EM/125KHz | Mifare/13.56MHz |
Mifare/13.56mHZ |
| Card Type | Ultralight,MF1(S50,S70),Desfire EV1,NTag,CPU,IC Keytag,UID,other ISO/IEC 14443A | ||
| Readable Codes | QR, Data Matrix, PDF417,one-dimensional code, EAN13, EAN8, UPC-A, UPC-EO, UPC-E1, Code 128, Code 39, Code 93, CodaBar | ||
| Code Identifcation Angle | 45° inclined plane with the lens as the center point | ||
|
Read Distance
|
QR Code:0~20cm; Card:3~6cm |
||
|
Reading Speed
|
<200ms
|
||
|
Verification Type |
Card,QR Code
|
||
|
LED Indicator
|
Green (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Working Voltage |
DC 4~15V
|
||
|
Working Current |
Standby 100mA,≤300mA
|
||
| Operating System | WindowsXP/7/8/10,Linux,Android | ||
|
Operating Temperature |
-20°C ~ +60°C
|
||
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
||
|
Ingress Protection Rate |
/
|
||
| Housing Material | PC+Acrylic(scan code window) | ||
|
Unit Weight
|
150g
|
||
| Shipping Weight | 210g | ||
|
Dimension(WxHxD)
|
86*86*42mm(L*W*H)
|
||

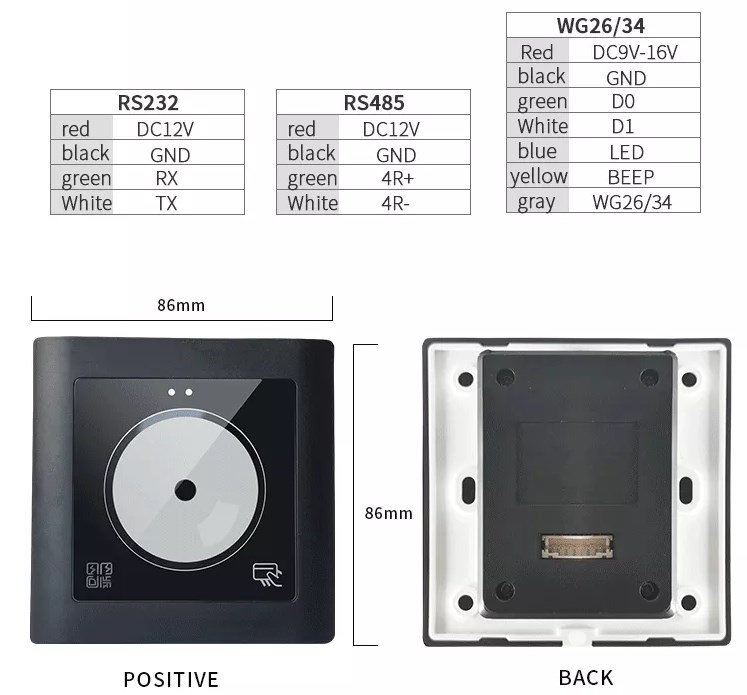

Wiring Guide:

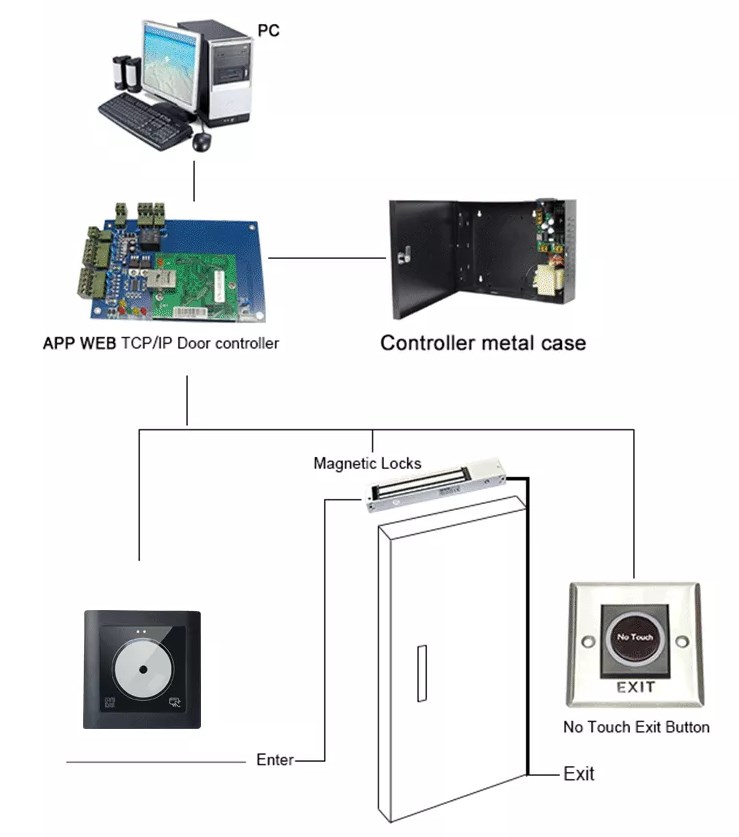

Access Control System Diagram:
