Bluetooth Smart Lock

DX-BL660F

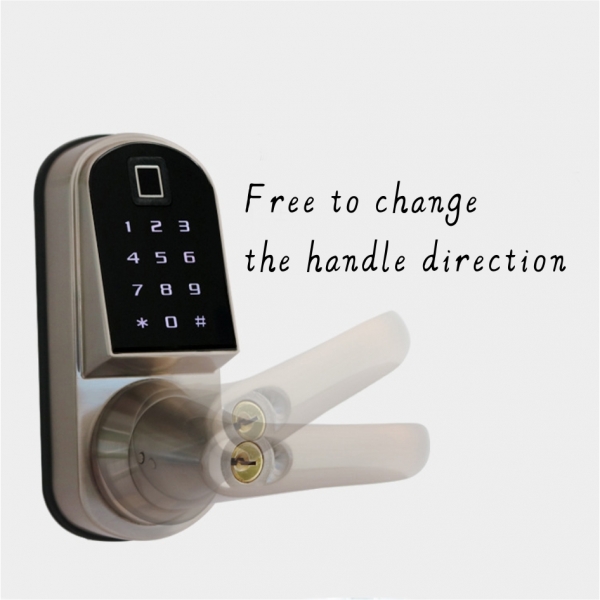

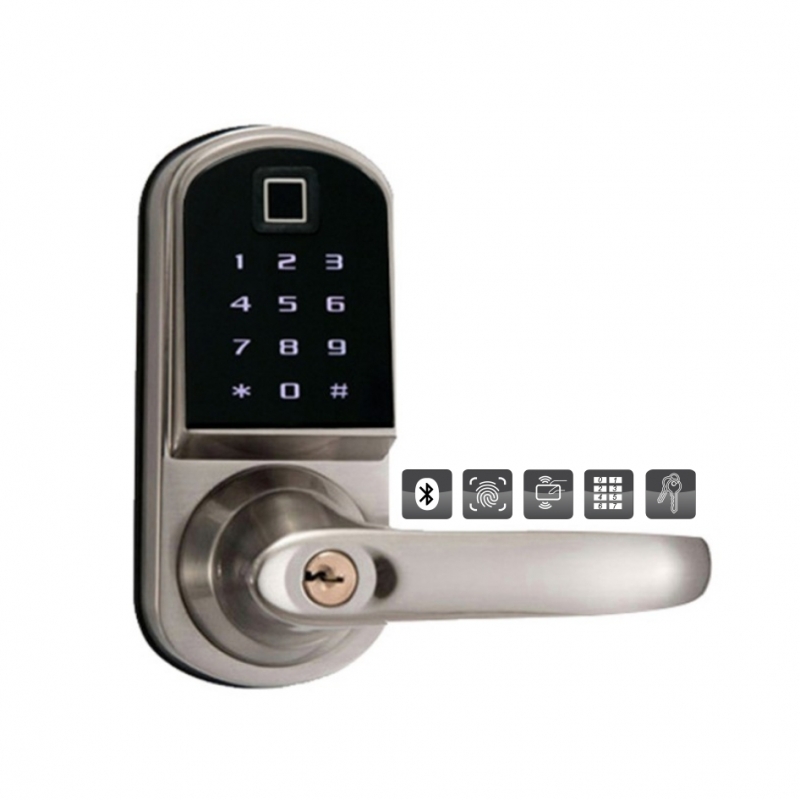

Smart Bluetooth Fingerprint Door Lock

Bluetooth Smart Encryption Technology
>
 Unlock modes:APP,fingerprint,card,password,mechanical key
> Card format: Mifare M1/13.56MHz
> Exteral emergency power supply design
Material:Zinc Alloy,Touch screen keypad
Remote Auothrization,GrantPower management
Back stage storage 1,000 unlocking record.
Battery:4 AA alkaline batteries
External power interface
Communication interface:BLE4.0

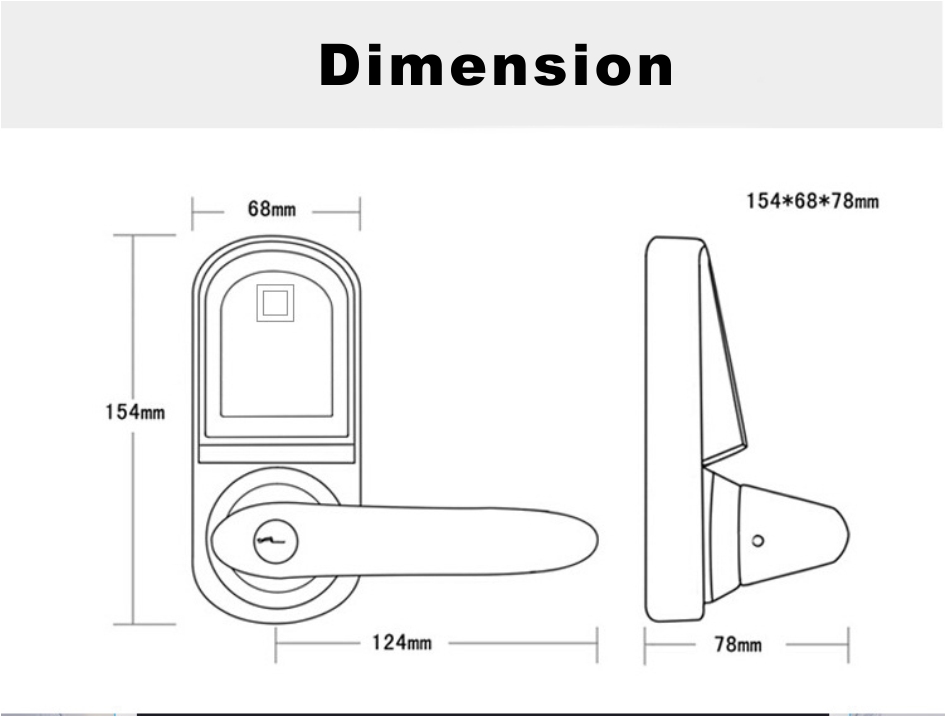

Dimension: 154*68*78mm
Weight:2500g

Enquiry Now
    Material Zinc Alloy
    Lock Latch Single Latch mortise
    Recognition mode Mobile APP,Fingerprint,RFID Card,Password,Michanical Key
    Bluetooth Standard Bluetooth 4.1 BLE
    Smart Phone System Supported Android 4.3/ISO.0 or above
    Recognition Speed <1.5s
    User Fingerprint Capacity 200
    User Password capacity no limited(APP showing password),150(user set password)
    User Card Capacity 200
    Card type 13.56MHz MF M1/IC card
    Reading distance 0~3cm
    Keypad Backlight Touch-screen keypad
    Emergency Charging Interface Micro USB
    Power Supply 4*AA
    Batter Life Around 1 year
    Low Power Alarm Yes
    Static Current <20~50uA
    Danamic Current 200mA
    Working temperature -20℃~65℃
    Storage Temperature -30℃~70℃
    Working Humidity 15%RH~93%RH
    Door Thickness 35~80mm
    Color Available Silver
    Size 154*68*78mm
    Weight 2.5KGs
