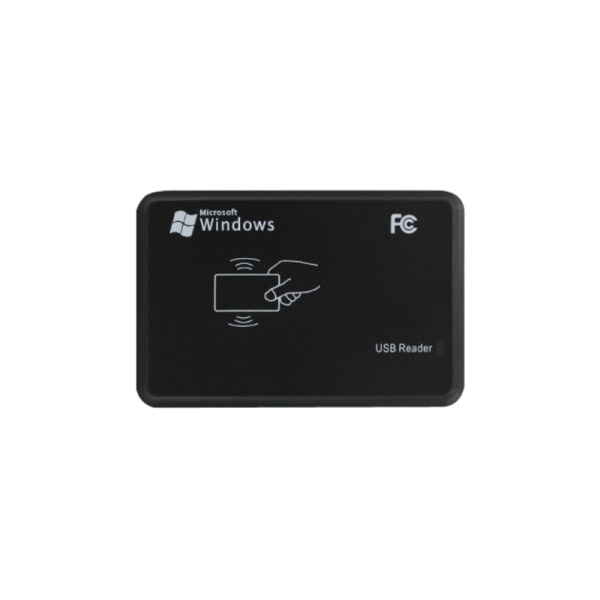

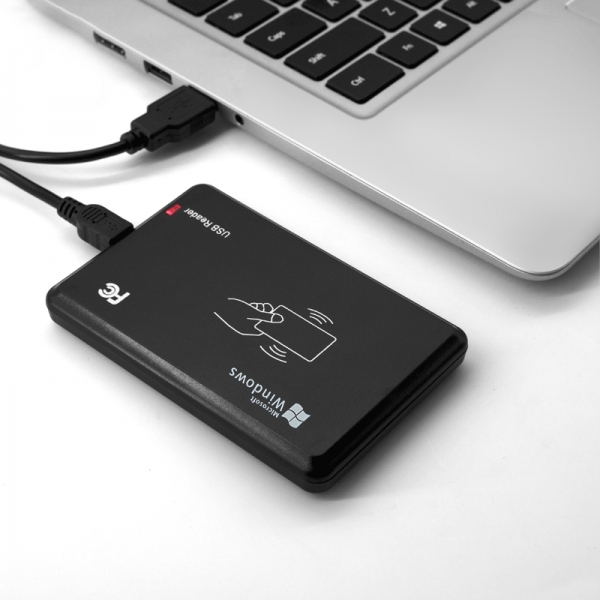

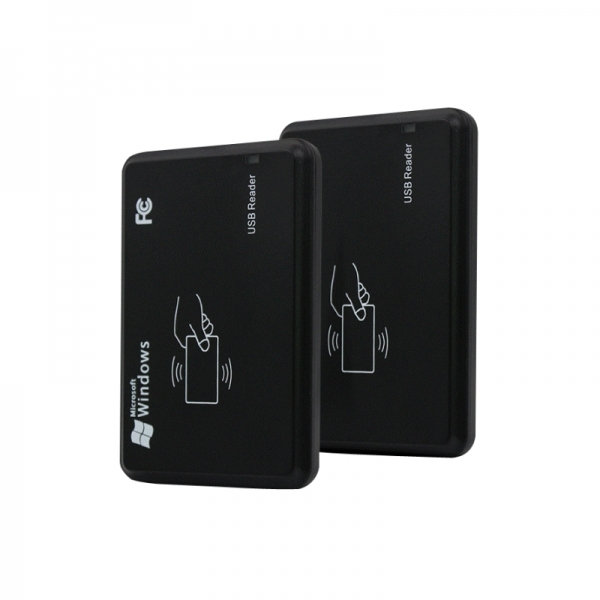

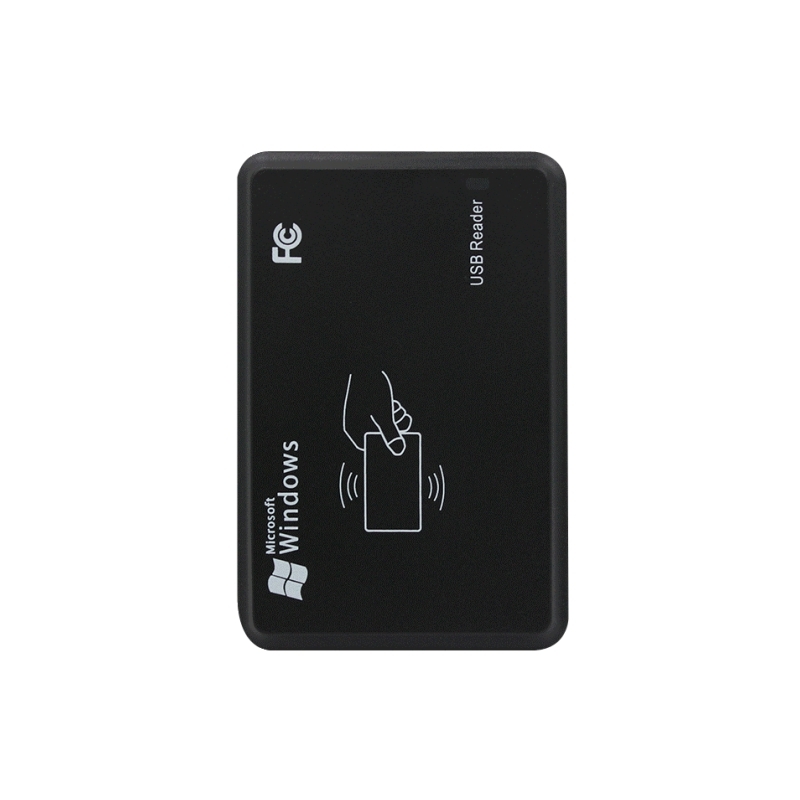

The USB Card Reader is a high performance,easy to operate,plug and play,USB or RS232 125KHZ smart card desktop reader.Its widely used in access control,personal identification,physical and logical access control,membership management and so on.
· USB Connector or RS232,Plug and play.
· Auto answer mode
· Reading and sending the ID number
· Card number programmable
· Available for Windows,Android,Linux OS.
Specifications:
· Auto answer mode
· Reading and sending the ID number
· Card number programmable
· Available for Windows,Android,Linux OS.
Specifications:
|
Model No.
|
DX-UR10-EM
|
DX-UR10-MF
|
DX-UR10-RS232 |
| Communication Port | USB | USB | RS232 |
|
Read card Format
|
EM/125KHz | Mifare/13.56MHz |
Mifare/13.56mHZ |
| Card Type | TK4100,EM4100,EM4200 and its compatible cards | ||
| Read Time | <100ms | ||
|
Read Distance
|
0~10cm |
||
|
Reading Speed
|
<200ms
|
||
|
Verification Type |
Card
|
||
|
LED Indicator
|
Green (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Working Voltage |
DC 5V (USB port)
|
||
|
Working Current |
Standby 100mA,≤300mA
|
||
| Operating System | WindowsXP/7/8/10,Linux,Android | ||
|
Operating Temperature |
-20°C ~ +60°C
|
||
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
||
|
Ingress Protection Rate |
/
|
||
| Housing Material | ABS | ||
|
Unit Weight
|
140g
|
||
| Shipping Weight | 200g | ||
|
Dimension(WxHxD)
|
105*70mm(L*W)
|
||
