Wiegand Converter

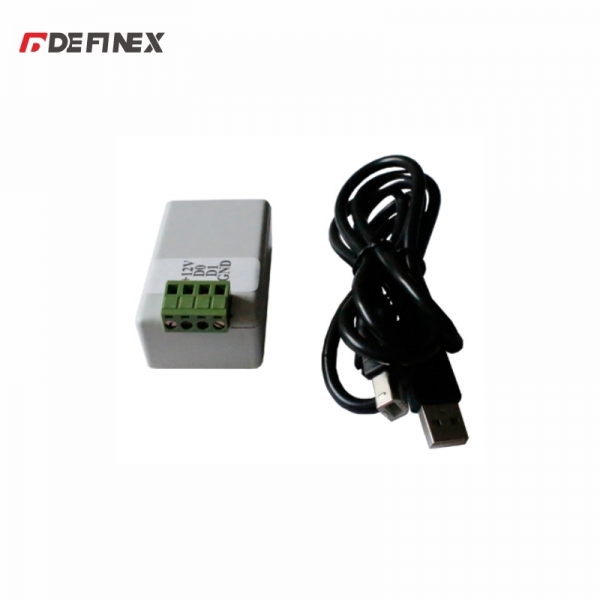

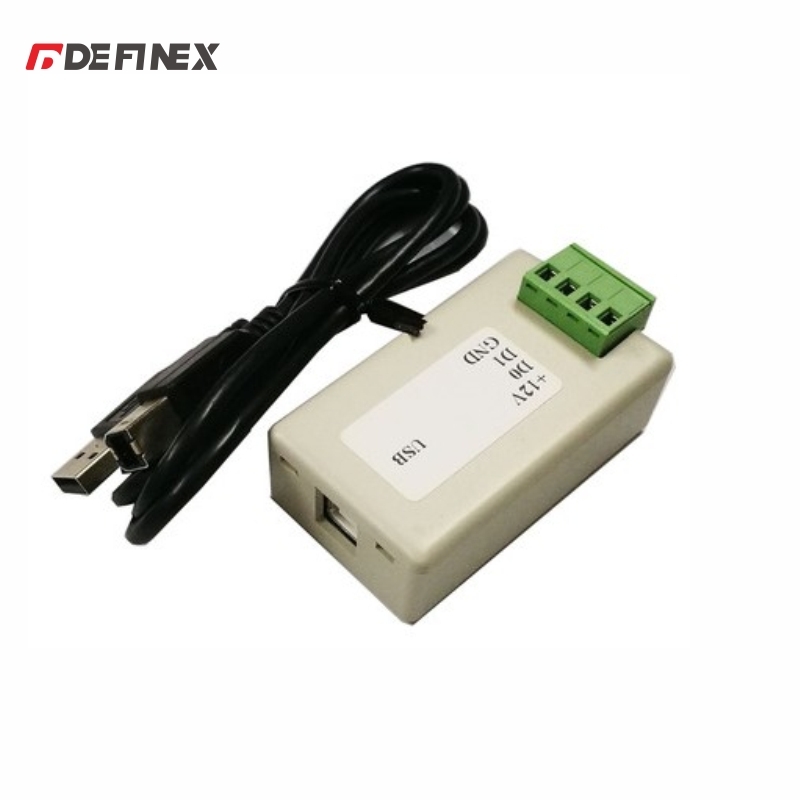

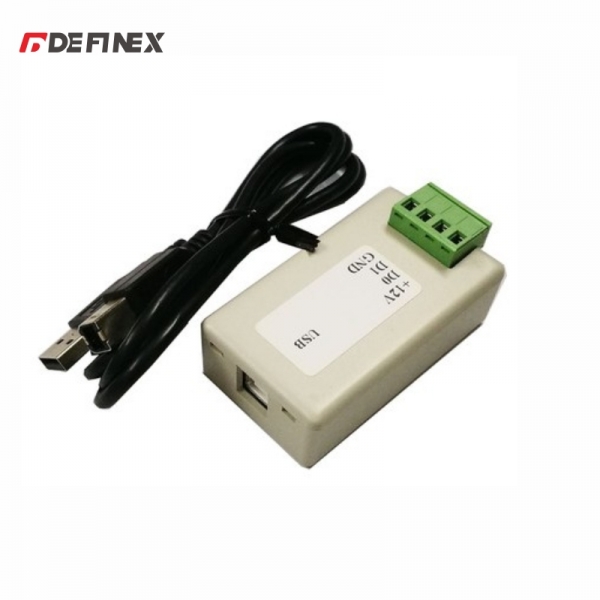

Two-way Wiegand to USB converter

* Wiegand 26/34 to USB converter(Two-way)
* Working voltage: DC 9V-12V
Enquiry Now

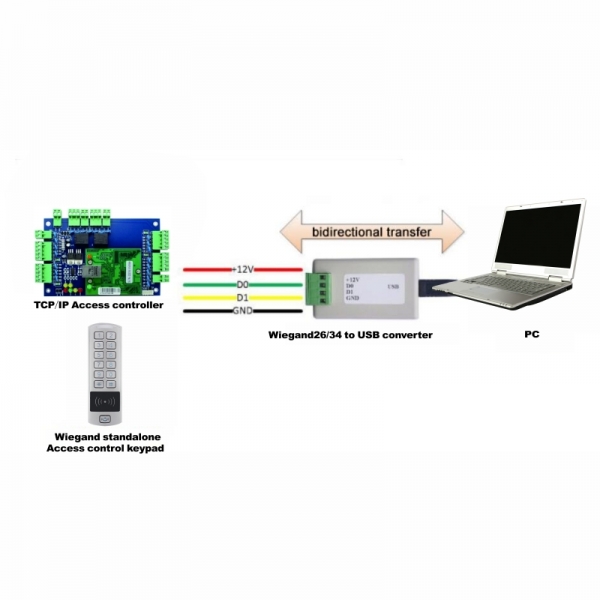

    Wiegand to USB communication converter used for access control system and RFID System

    DA-WG2USB convector supports double-way transmission, can transfer Wiegand 26bit or Wiegand 34bit data to USB data, also can transfer USB data to Wiegand 26bit or Wiegand 34bit data, standard Wiegand output 26bit data in default and standard USB output format.


    Working voltage: DC 9V-12V;

    Compatible with USB standards,corresponding to Wiegand all the way out; With an external watchdog to prevent the crash.

    Communication support:

    Baud Rate 9600 N 8 1

    1, WG26 or WG34 input: 4 byte number: 1010795316 = (hex) 3C3F8334
                                                      WG26 input (hexadecimal) 3F8334
                                                      WG34 input (hexadecimal) 3C3F8334
    2, USB output(Virtual serial port RS232)

    Suitable with computer USB port (after install USB driver), not working with USB barcode scanner or other USB device without operstaion system.

    File Name : Format: Size: Download:
